Slew Drive

What is SE Slew Drive?

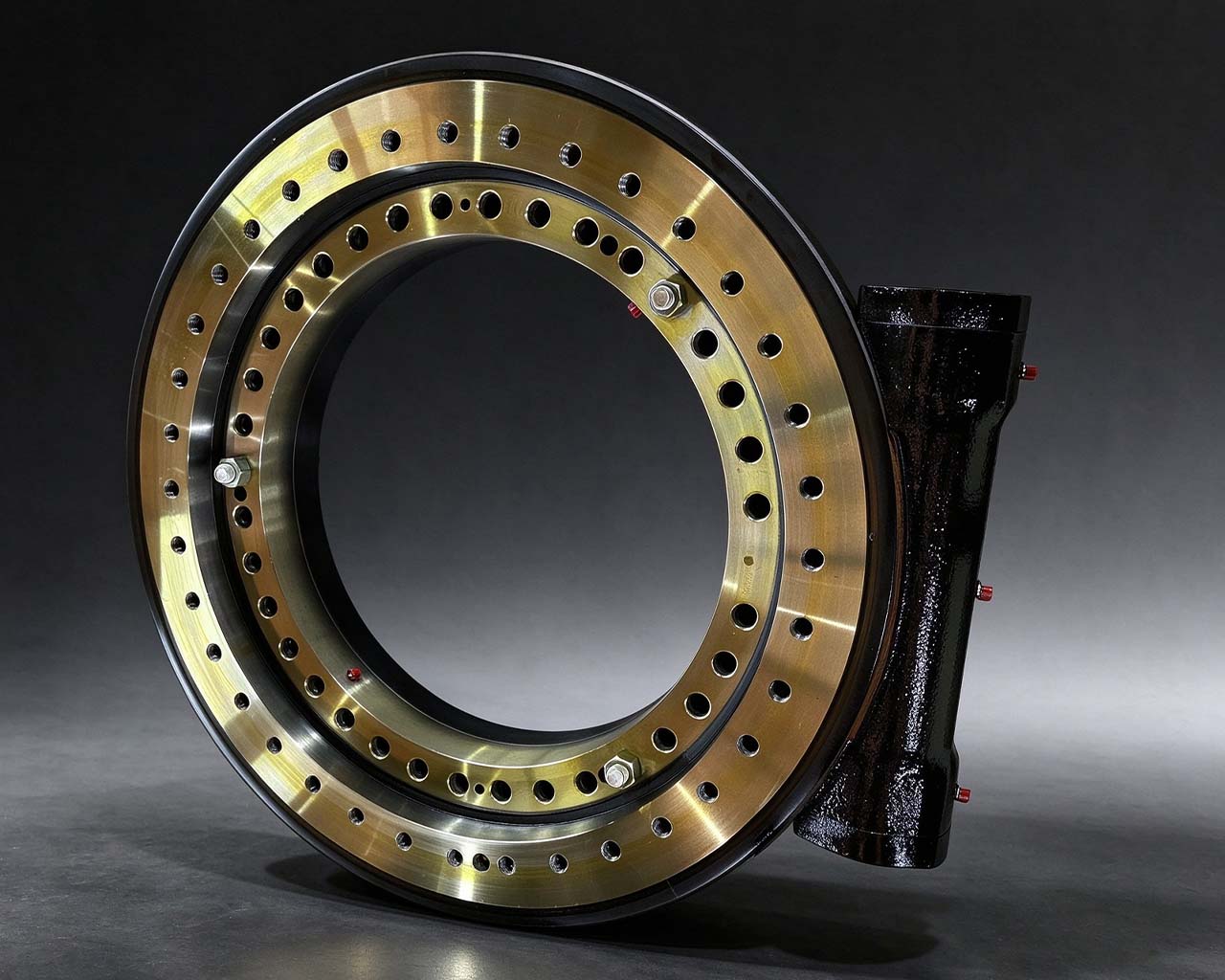

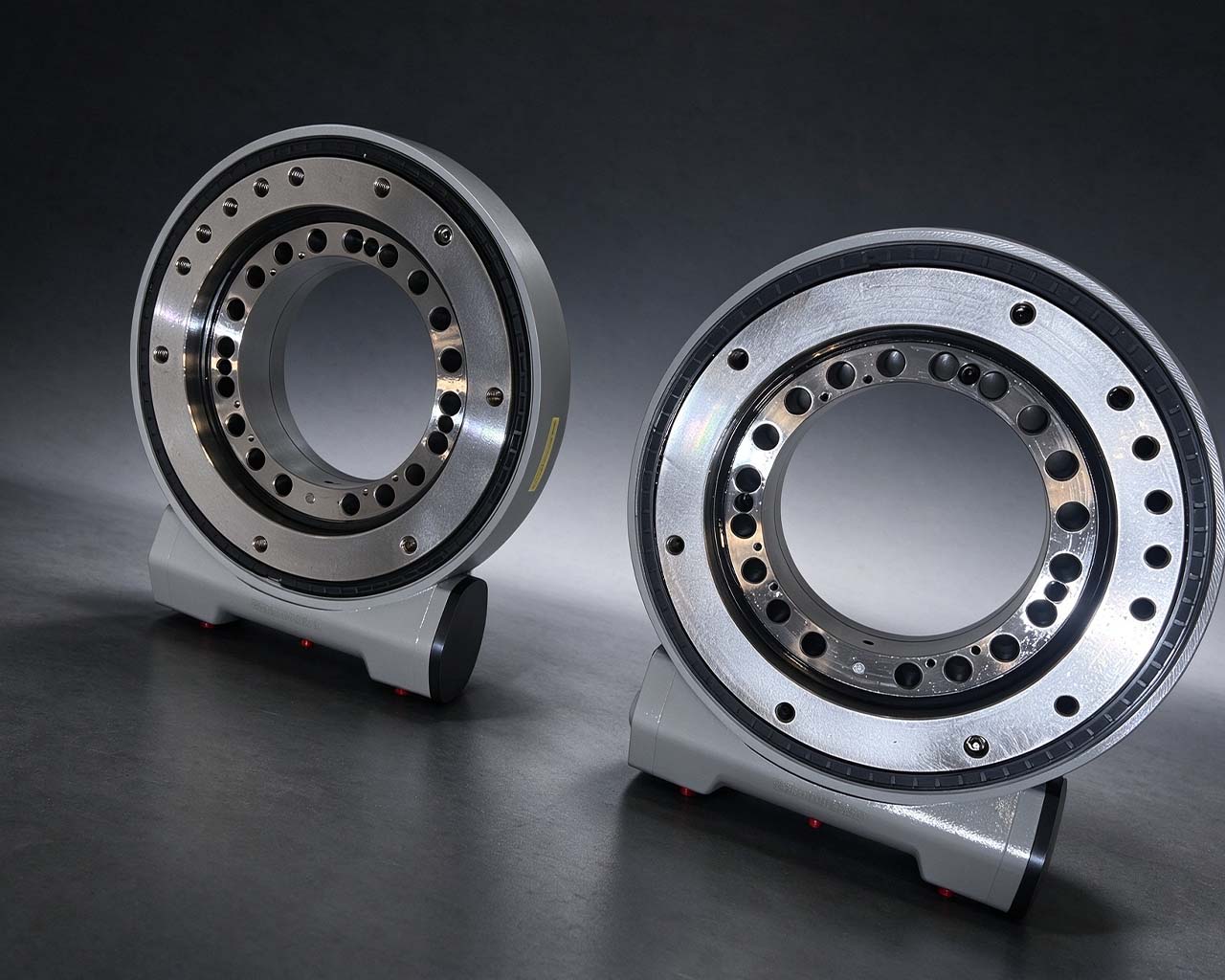

A SE Slew Drive (also known as a slewing drive) is a type of gearbox specifically designed for applications that require heavy loads to be precisely rotated and controlled. The SE Slew Drive essentially combines a slew bearing (a special type of bearing that can handle axial forces and rotation) with a worm gear drive. This combination allows for precise and efficient rotation of heavy loads while handling external forces imposed on the system.

In a SE Slew Drive, the worm gear engages the large outer ring bearing, converting the input torque to applicable torque on the output. This design provides high gear ratios and high load-carrying capacity, achieving controlled, slow, and precise rotation in systems like solar trackers, wind turbines, cranes, and heavy equipment attachments.

Key features of the SE Slew Drive

High Gear Ratios: The worm gear design provides high gear ratios, allowing the system to produce high torque output while maintaining low-speed rotation, making it perfect for precision control in heavy-duty applications.

Compact Design: The combination of the slew bearing and worm gear drive in a single unit results in a compact and efficient design that can be easily integrated into a range of applications.

Load Capacity: SE Slew Drives are designed to handle high loads and accommodate axial, radial, and moment forces, as well as provide stability and support to the overall system.

Low Maintenance: Due to their enclosed design, SE Slew Drives generally require minimal maintenance, offering a more reliable and cost-effective solution than traditional systems like multi-component gear trains.

Flexible Integration: SE Slew Drives are easily adaptable and can be integrated into various applications with different load capacities, torque requirements, and mounting arrangements.

Applications of SE Slew Drive

SE Slew Drives are widely used in a variety of applications that require precise rotation and positioning under heavy loads. These applications often need high torque, load-carrying capacity, and reliable performance. Some common applications of SE Slew Drives include:

Solar Trackers: Slew drives are used in single-axis and dual-axis solar trackers to accurately position solar panels to follow the sun's movement throughout the day. This maximizes solar energy output by ensuring that the panels are always at an optimal angle to the sunlight.

Wind Turbines: Slew drives are used in wind turbines to control the orientation of the nacelle (where the blades and generator are housed) to face the wind's direction for maximum energy capture.

Cranes and Excavators: In heavy machinery like cranes and excavators, slew drives are employed to provide precise rotation and positioning of the boom, enabling these machines to move or lift heavy objects in a controlled manner.

Satellite and Radar Antennas: SE Slew Drives are used for accurate positioning and rotation of satellite and radar antennas to ensure precise communication and signal tracking.

Tunnel Boring Machines: Slew drives help provide precise rotation and positioning of the cutting head in tunnel boring machines, ensuring controlled and stable excavation of tunnels.

Industrial Turntables: In manufacturing and assembly processes, industrial turntables may use slew drives to provide accurate rotation and positioning of heavy items for various assembly or inspection operations.

Robotic Positioning Systems: In industrial automation and robotics, slew drives can be utilized to offer precise and controlled rotation for robotic arms and manipulators that handle heavy loads.
